HOLMIUM CHLORIDE (HOCL₃)
HOLMIUM CHLORIDE / HOLMIUM TRICHLORIDE / HOLMIUM(III) CHLORIDE / HOLMIUM CHLORIDE ANHYDROUS
1. PRODUCT IDENTIFICATION AND CHEMICAL IDENTITY
| Parameter | Information |
|---|---|
| Product Name | Holmium Chloride |
| Chemical Name | Holmium(III) Chloride, Holmium Trichloride |
| Other Names | HoCl₃, Holmium Chloride Anhydrous |
| CAS Number | 10138-62-2 |
| EC Number (EINECS) | 233-391-0 |
| MDL Number | MFCD00016059 |
| Chemical Formula | HoCl₃ |
| Molecular Weight | 269.30 g/mol |

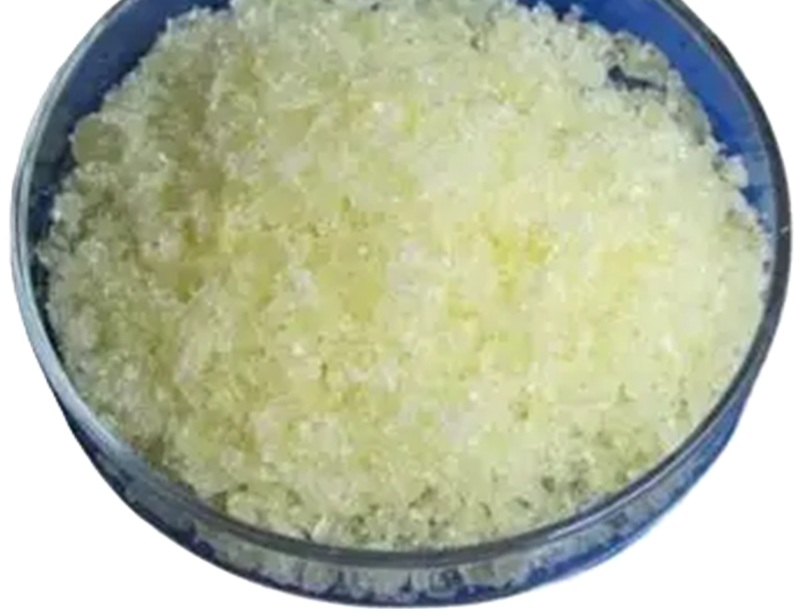

| Appearance | Yellow crystalline solid |
| Odor | Odorless |
| Physical State (20°C) | Solid (crystalline) |
2. CHEMICAL STRUCTURE
2.1. Molecular Structure
Holmium chloride is the chloride salt of the rare earth element holmium. Holmium ions (Ho³⁺) and chloride ions (Cl⁻) are present in a 1:3 ratio. It appears as a yellow crystalline solid. Due to its hygroscopic nature, it is sensitive to degradation in humid environments. It is soluble in water and ethanol. High purity grades (3N–4N) are available for optical and electronic applications.
Structural Features:
HOLMIUM CHLORIDE [HoCl₃]
|
Ho³⁺ - Cl⁻ Ionic Bonds
|
+----------------+----------------+
| | |
Yellow Crystalline Soluble in Highly
Water and Hygroscopic
Ethanol
2.2. Structural Properties
| Parameter | Value |
|---|---|
| Crystal Structure | Hexagonal |
| Chemical Formula | HoCl₃ |
| Molecular Weight | 269.30 g/mol |
| Density | ~3.7 g/cm³ |
| Appearance | Yellow crystalline solid |
| Melting Point | ~730 °C |
| Boiling Point | ~1,250 °C (decomposes) |
| pH (1M solution) | Slightly acidic (~5.0-6.0) |
3. PHYSICAL AND CHEMICAL PROPERTIES
| Property | Value | Description |
|---|---|---|
| Appearance | Yellow crystalline solid | - |
| Odor | Odorless | - |
| Chemical Formula | HoCl₃ | - |
| Molecular Weight | 269.30 g/mol | - |
| Density | ~3.7 g/cm³ | - |
| Melting Point | ~730 °C | - |
| Boiling Point | ~1,250 °C | Decomposes |
| Solubility in Water (25°C) | Soluble | - |
| Solubility in Ethanol | Soluble | - |
| Solubility in Acids | Soluble | - |
| pH (1M solution) | Slightly acidic (~5.0-6.0) | - |
| Stability | Hygroscopic | Must be stored in moisture-free conditions |
| Hygroscopicity | High | Absorbs moisture from air |
4. PURITY GRADES
| Parameter | Technical Grade | High Purity Grade | Analytical Grade |
|---|---|---|---|
| Purity (HoCl₃) | ≥ 99.0% | ≥ 99.9% (3N) | ≥ 99.99% (4N) |
| Holmium (Ho) Content | ≥ 60.5% | ≥ 61.0% | ≥ 61.3% |
| Chloride (Cl⁻) Content | ≥ 39.0% | ≥ 39.5% | ≥ 39.8% |
| Other Rare Earths | ≤ 1.0% | ≤ 0.1% | ≤ 0.01% |
| Iron (Fe) | ≤ 100 ppm | ≤ 50 ppm | ≤ 20 ppm |
| Calcium (Ca) | ≤ 100 ppm | ≤ 50 ppm | ≤ 20 ppm |
| Sodium (Na) | ≤ 100 ppm | ≤ 50 ppm | ≤ 20 ppm |
| Lead (Pb) | ≤ 50 ppm | ≤ 20 ppm | ≤ 10 ppm |
| Sulfate (SO₄²⁻) | ≤ 0.2% | ≤ 0.1% | ≤ 0.05% |
| Nitrate (NO₃⁻) | ≤ 0.2% | ≤ 0.1% | ≤ 0.05% |
| Loss on Drying | Variable | Variable | Variable |
| Particle Size (D50) | 10-50 µm | 5-20 µm | 1-10 µm |
5. STABILITY AND REACTIVITY
| Parameter | Information |
|---|---|
| Chemical Stability | Hygroscopic; stable under dry, closed conditions. |
| Conditions to Avoid | High humidity, exposure to open atmosphere, prolonged air contact, high temperatures. |
| Incompatible Materials | Strong oxidizing agents, strong acids, alkali metals. |
| Hazardous Decomposition Products | At high temperatures: hydrogen chloride (HCl) and holmium oxide (Ho₂O₃). |
| Hazardous Polymerization | Will not occur. |
| Hygroscopicity | High; when exposed to air, it absorbs moisture and tends to deliquesce (become liquid). |
5.1. Chemical Reactions
Thermal Decomposition:
2HoCl₃ → 2HoCl₂ + Cl₂ (~800°C)
2HoCl₃ + 3H₂O → Ho₂O₃ + 6HCl (hydrolysis)
Behavior in Aqueous Solution:
HoCl₃(aq) → Ho³⁺(aq) + 3Cl⁻(aq)
Precipitation with Alkali:
HoCl₃ + 3NaOH → Ho(OH)₃↓ + 3NaCl
Precipitation with Ammonia:
HoCl₃ + 3NH₄OH → Ho(OH)₃↓ + 3NH₄Cl
6. APPLICATION AREAS
6.1. Optical Materials and Lasers
| Application | Function | Details |
|---|---|---|
| Holmium-Doped Laser Crystals | Optical dopant | Ho:YAG, Ho:YLF, Ho:Glass |
| Optical Glasses | Rare earth additive | Special optical applications |
| Fiber Optic Amplifiers | Signal amplification | ~2 µm emission |
6.2. Catalyst Applications
| Application | Function | Details |
|---|---|---|
| Lewis Acid Catalyst | Catalytic activity | Organic synthesis reactions |
| Polymerization Catalyst | Polymerization initiator | Some polymerization reactions |
6.3. Electronics and Nanotechnology
| Application | Function | Details |
|---|---|---|
| Thin Film Coatings | Source material | PVD and CVD applications |
| Nanomaterial Synthesis | Starting material | Holmium-based nanoparticles |
| Rare Earth Research | Reagent and analysis | Rare earth chemistry studies |
6.4. Sectoral Suitability Table
| Sector | Suitability | Explanation |
|---|---|---|
| Electronics | Suitable | Thin films, semiconductor research |
| Optoelectronics | Suitable | Laser crystals, optical glasses |
| Catalyst | Suitable | Lewis acid, organic synthesis |
| Nanotechnology | Suitable | Nanoparticle synthesis |
| Research | Suitable | Rare earth chemistry, materials science |
| Pharmaceutical | Not Suitable | Not suitable |
| Agriculture | Not Suitable | Not suitable |
| Food | Not Suitable | Not suitable |
7. PRODUCTION PROCESS
| Stage | Process | Description |
|---|---|---|
| 1. Raw Material Preparation | Holmium oxide (Ho₂O₃) | High purity holmium oxide obtained |
| 2. Acid Dissolution | Dissolution in hydrochloric acid (HCl) | Ho₂O₃ + 6HCl → 2HoCl₃ + 3H₂O |
| 3. Filtration | Removal of impurities | Insoluble impurities are filtered out |
| 4. Concentration | Evaporation | Solution is concentrated |
| 5. Crystallization | Anhydrous form | HoCl₃ crystallized |
| 6. Drying | Controlled conditions | Crystals dried under appropriate conditions |
| 7. Packaging | Moisture-proof packaging | Packaged under inert atmosphere due to hygroscopic nature |
7.1. Major Producing Countries
| Country | Description |
|---|---|
| China | Major producer |
| USA | Rare earth production (Sigma-Aldrich, American Elements) |
| Germany | High purity production |
| Japan | High purity production |
8. ALTERNATIVE / SUBSTITUTE PRODUCTS
| Alternative | Description | When to Use |
|---|---|---|
| Holmium Oxide (Ho₂O₃) | Holmium source | When oxide form is required |
| Holmium Nitrate (Ho(NO₃)₃) | Holmium source | When different anion is required |
| Holmium Acetate | Organic synthesis | When organic solvent compatibility is required |
| Yttrium Chloride (YCl₃) | Similar chemical properties | When Y is required |
| Erbium Chloride (ErCl₃) | Similar chemical properties | When Er is required |
9. SAFETY AND TOXICOLOGY
| Parameter | Value |
|---|---|
| Acute Oral Toxicity (LD50, Rat) | > 2,000 mg/kg (low toxicity) |
| Dermal Toxicity | Low |
| Skin Irritation | Mild to moderate irritant |
| Eye Irritation | Serious irritant |
| Inhalation | Dust inhalation may cause respiratory tract irritation. |
| Carcinogenicity | Not classified as carcinogenic. |
| Mutagenicity | Not mutagenic. |
| Chronic Effects | Rare earth compounds have low bioavailability; however, high doses may cause liver effects. |
| Environmental Hazards | Moderate aquatic toxicity; caution required due to chloride ion content. |
9.1. GHS Classification
| Hazard Class | Category | H-Statement |
|---|---|---|
| Skin Irritation | Category 2 | H315: Causes skin irritation. |
| Eye Irritation | Category 2A | H319: Causes serious eye irritation. |
| Specific Target Organ Toxicity | Category 3 | H335: May cause respiratory irritation. |
| Hazardous to the Aquatic Environment | Category 3 | H402: Harmful to aquatic life. |
Signal Word: WARNING
Hazard Pictograms: GHS07 (Exclamation Mark)
10. PRECAUTIONARY STATEMENTS (P-CODES)
| Code | Statement |
|---|---|
| P261 | Avoid breathing dust. |
| P264 | Wash thoroughly after handling. |
| P271 | Use only in well-ventilated areas. |
| P280 | Wear protective gloves/eye protection/face protection. |
| P302+P352 | IF ON SKIN: Wash with plenty of soap and water. |
| P304+P340 | IF INHALED: Remove person to fresh air and keep comfortable for breathing. |
| P305+P351+P338 | IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. |
| P337+P313 | If eye irritation persists: Get medical advice/attention. |
| P501 | Dispose of contents/container in accordance with local regulations. |
11. FIRST AID MEASURES
| Exposure Route | Action to Take |
|---|---|
| Inhalation | Remove to fresh air. If symptoms persist, seek medical attention. |
| Skin Contact | Wash with plenty of soap and water. Remove contaminated clothing. If irritation persists, seek medical attention. |
| Eye Contact | Rinse thoroughly with plenty of water for at least 15 minutes. Remove contact lenses. If irritation persists, seek medical attention. |
| Ingestion | Rinse mouth. Drink plenty of water. If large amount is swallowed, seek medical attention. |
12. STORAGE AND SHELF LIFE
| Parameter | Condition |
|---|---|
| Storage Conditions | Store in a cool, dry, and well-ventilated area. Ensure a moisture-free environment. |
| Container Requirements | Moisture-proof, airtight, tightly closed containers. Glass bottle or PTFE-lined containers. |
| Temperature | Room temperature (15-25°C). |
| Shelf Life | 12-18 months under appropriate conditions (due to hygroscopic nature). |
| Stability Note | Highly hygroscopic; rapidly degrades in humid environments. If left open, Ho(OH)₃ and Ho₂(CO₃)₃ may form. |
13. PACKAGING OPTIONS
| Packaging Type | Quantity | Material |
|---|---|---|
| Laboratory Packaging | 5 g, 10 g, 25 g, 50 g | Glass bottle, sealed cap, inert atmosphere |
| Laboratory Packaging | 100 g, 250 g, 500 g | HDPE bottle, inert atmosphere |
| Industrial Packaging | 1 kg, 5 kg | PE-lined bag, moisture-proof |
| Drum | 25 kg | HDPE drum, moisture-proof |
14. TRANSPORT INFORMATION
| Parameter | Information |
|---|---|
| UN Number | 3077 (Environmentally hazardous substance) |
| Hazard Class | 9 (Miscellaneous dangerous substances) |
| Packing Group | III |
| ADR/RID | Regulated |
| IMDG | Regulated |
| IATA | Regulated |
| HS Code | 2846.90.00.00.19 (Other rare earth compounds) |
15. REGULATORY STATUS
| Region / Authority | Status |
|---|---|
| European Union (REACH) | Registered |
| Turkey (KKDIK) | Compliance required |
| TSCA (USA) | Registered |
| CLP/GHS | Compliant |
| FDA/EFSA | Not approved as a food additive |
| ISO 9001:2015 | Production compliance |
16. OTHER NAMES AND SYNONYMS
| Name | Description |
|---|---|
| Holmium Trichloride | Chemical name |
| Holmium(III) Chloride | Chemical name |
| HoCl₃ | Chemical abbreviation |
| Holmium Chloride Anhydrous | English name |
| Holmium Trichloride | English name |
17. QUICK REFERENCE TABLE
| Property | Value |
|---|---|
| CAS Number | 10138-62-2 |
| EC Number | 233-391-0 |
| Chemical Formula | HoCl₃ |
| Molecular Weight | 269.30 g/mol |
| Appearance | Yellow crystalline solid |
| Density | ~3.7 g/cm³ |
| Melting Point | ~730 °C |
| Solubility in Water | Soluble |
| UN Number | 3077 |
| HS Code | 2846.90.00.00.19 |
| GHS Signal Word | WARNING |
18. CRITICAL WARNINGS AND BEST PRACTICES
CRITICAL WARNINGS:
Highly Hygroscopic Nature: Holmium chloride has a very high moisture absorption capacity. When exposed to air, it rapidly absorbs moisture, begins to dissolve, and loses its quality. Extreme care must be taken to avoid moisture during storage and handling.
Thermal Decomposition: Begins to decompose above ~730°C; at higher temperatures, toxic hydrogen chloride (HCl) gas is released. Ventilation is essential.
Incompatibility: Contact with strong oxidizing agents creates a fire and explosion risk.
Eye and Skin Irritation: Due to its acidic nature, it causes irritation to skin and eyes. Protective equipment is mandatory during use.
Environmental Impact: Classified as environmentally hazardous under UN 3077; release into water sources must be prevented.
BEST PRACTICE RECOMMENDATIONS:
Storage:
Store in a cool, dry, and well-ventilated area.
Use moisture-proof, airtight containers.
Keep away from oxidizing agents.
Store at room temperature (15-25°C).
Handling:
Immediately close containers tightly when not in use.
Ensure a dry working environment during use (humidity control).
Use a dust mask (N95 or better), protective goggles, and chemically resistant gloves.
Avoid dust formation and inhalation.
Wash hands thoroughly after handling.
When preparing solutions, add slowly due to acidic character.
Waste Management:
Dispose of in accordance with local regulations as heavy metal waste.
Do not discharge into water sources or sewers.
For large quantities, rare earth recovery should be considered.
LEGAL DISCLAIMER
This Technical Data Sheet (TDS) is for informational purposes only and has been prepared based on available technical data. The user is solely responsible for determining the suitability of the product for their specific applications and for complying with all local, national, and international regulations. For complete safety, storage, handling, transport, disposal, and regulatory compliance information, the official Safety Data Sheet (SDS/MSDS) provided by the manufacturer/supplier must be consulted. This document does not substitute professional advice. Holmium chloride requires careful handling and storage due to its highly hygroscopic nature and role in optical applications; it is an important raw material for laser, optical, and catalyst applications.
