YTTERBIUM CHLORIDE HEXAHYDRATE (YBCL₃·6H₂O)
YTTERBIUM CHLORIDE HEXAHYDRATE / YTTERBIUM TRICHLORIDE HEXAHYDRATE / YTTERBIUM(III) CHLORIDE HEXAHYDRATE
1. PRODUCT IDENTIFICATION AND CHEMICAL IDENTITY
| Parameter | Information |
|---|---|
| Product Name | Ytterbium Chloride Hexahydrate |
| Chemical Name | Ytterbium(III) Chloride Hexahydrate, Ytterbium Trichloride Hexahydrate |
| Other Names | YbCl₃·6H₂O, Ytterbium Chloride Hydrate |
| CAS Number | 10035-01-5 |
| EC Number (EINECS) | 233-058-6 |
| MDL Number | MFCD00149894 |
| Chemical Formula | YbCl₃·6H₂O |
| Molecular Weight | 385.41 g/mol |

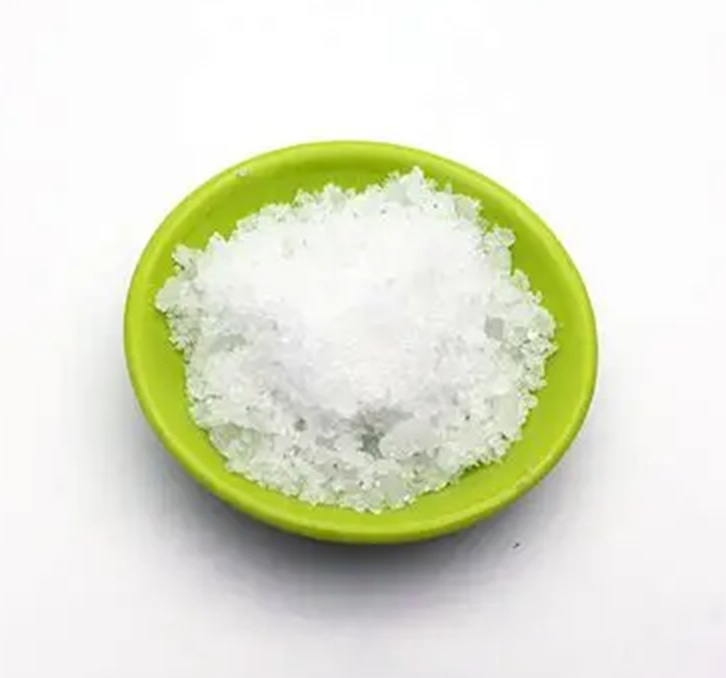

| Appearance | White crystalline solid |
| Odor | Odorless |
| Physical State (20°C) | Solid (crystalline) |
2. CHEMICAL STRUCTURE
2.1. Molecular Structure
Ytterbium chloride hexahydrate is the hydrated form of the chloride salt of the rare earth element ytterbium. Ytterbium ions (Yb³⁺) and chloride ions (Cl⁻) are present in a 1:3 ratio. Each ytterbium chloride unit contains six molecules of water of hydration. Due to its hygroscopic nature, it is sensitive to degradation in humid environments. It is soluble in water and ethanol. High purity grades (3N–4N) are available for optical, laser, and research applications.
Structural Features:
YTTERBIUM CHLORIDE HEXAHYDRATE [YbCl₃·6H₂O]
|
Yb³⁺ - Cl⁻ Ionic Bonds + 6H₂O
|
+----------------+----------------+
| | |
White Crystalline Soluble in Highly
Water and Hygroscopic
Ethanol
2.2. Structural Properties
| Parameter | Value |
|---|---|
| Crystal Structure | Monoclinic |
| Chemical Formula | YbCl₃·6H₂O |
| Molecular Weight | 385.41 g/mol |
| Density | ~2.4 g/cm³ |
| Appearance | White crystalline solid |
| Melting Point | ~100 °C (with water loss) |
| Boiling Point | >600 °C (decomposes after dehydration) |
| pH (1M solution) | Slightly acidic (~5.0-6.0) |
3. PHYSICAL AND CHEMICAL PROPERTIES
| Property | Value | Description |
|---|---|---|
| Appearance | White crystalline solid | - |
| Odor | Odorless | - |
| Chemical Formula | YbCl₃·6H₂O | - |
| Molecular Weight | 385.41 g/mol | - |
| Density | ~2.4 g/cm³ | - |
| Melting Point | ~100 °C | Hydrated form, with water loss |
| Solubility in Water (25°C) | Soluble | - |
| Solubility in Ethanol | Soluble | - |
| Solubility in Acids | Soluble | - |
| pH (1M solution) | Slightly acidic (~5.0-6.0) | - |
| Stability | Hygroscopic | Must be stored in moisture-free conditions |
| Hygroscopicity | High | Absorbs moisture from air |
4. PURITY GRADES
| Parameter | Technical Grade | High Purity Grade (3N) | Analytical Grade (4N) |
|---|---|---|---|
| Purity (YbCl₃·6H₂O) | ≥ 99.0% | ≥ 99.9% | ≥ 99.99% |
| Ytterbium (Yb) Content | ≥ 44.0% | ≥ 44.5% | ≥ 44.8% |
| Chloride (Cl⁻) Content | ≥ 27.0% | ≥ 27.5% | ≥ 27.8% |
| Other Rare Earths | ≤ 1.0% | ≤ 0.1% | ≤ 0.01% |
| Iron (Fe) | ≤ 100 ppm | ≤ 50 ppm | ≤ 20 ppm |
| Calcium (Ca) | ≤ 100 ppm | ≤ 50 ppm | ≤ 20 ppm |
| Sodium (Na) | ≤ 100 ppm | ≤ 50 ppm | ≤ 20 ppm |
| Lead (Pb) | ≤ 50 ppm | ≤ 20 ppm | ≤ 10 ppm |
| Sulfate (SO₄²⁻) | ≤ 0.2% | ≤ 0.1% | ≤ 0.05% |
| Nitrate (NO₃⁻) | ≤ 0.2% | ≤ 0.1% | ≤ 0.05% |
| Loss on Drying | Variable | Variable | Variable |
| Particle Size (D50) | 10-50 µm | 5-20 µm | 1-10 µm |
5. STABILITY AND REACTIVITY
| Parameter | Information |
|---|---|
| Chemical Stability | Hygroscopic; stable under dry, closed conditions. |
| Conditions to Avoid | High humidity, exposure to open atmosphere, prolonged air contact, high temperatures. |
| Incompatible Materials | Strong oxidizing agents, strong acids, alkali metals. |
| Hazardous Decomposition Products | At high temperatures: hydrogen chloride (HCl) and ytterbium oxide (Yb₂O₃). |
| Hazardous Polymerization | Will not occur. |
| Hygroscopicity | High; when exposed to air, it absorbs moisture and tends to deliquesce (become liquid). |
5.1. Chemical Reactions
Thermal Decomposition (Hydrated Form):
YbCl₃·6H₂O → YbCl₃ + 6H₂O (~100-150°C)
YbCl₃ + H₂O → YbOCl + 2HCl (hydrolysis at high temperature)
Behavior in Aqueous Solution:
YbCl₃(aq) → Yb³⁺(aq) + 3Cl⁻(aq)
Precipitation with Alkali:
YbCl₃ + 3NaOH → Yb(OH)₃↓ + 3NaCl
Precipitation with Ammonia:
YbCl₃ + 3NH₄OH → Yb(OH)₃↓ + 3NH₄Cl
6. APPLICATION AREAS
6.1. Optical and Laser Applications
| Application | Function | Details |
|---|---|---|
| Laser Crystals | Additive | Yb:YAG, Yb:Glass laser systems |
| Optical Materials | Rare earth additive | Special optical applications |
| Fiber Optic Amplifiers | Signal amplification | Ytterbium-doped fiber lasers |
6.2. Catalyst Applications
| Application | Function | Details |
|---|---|---|
| Lewis Acid Catalyst | Catalytic activity | Organic synthesis reactions |
| Polymerization Catalyst | Polymerization initiator | Some polymerization reactions |
6.3. Electronics and Nanotechnology
| Application | Function | Details |
|---|---|---|
| Thin Film Coatings | Source material | PVD and CVD applications |
| Nanomaterial Synthesis | Starting material | Ytterbium-based nanoparticles |
| Rare Earth Research | Reagent and analysis | Rare earth chemistry studies |
6.4. Sectoral Suitability Table
| Sector | Suitability | Explanation |
|---|---|---|
| Electronics | Suitable | Thin films, semiconductor research |
| Optoelectronics | Suitable | Laser crystals, optical materials |
| Catalyst | Suitable | Lewis acid, organic synthesis |
| Nanotechnology | Suitable | Nanoparticle synthesis |
| Research | Suitable | Rare earth chemistry, materials science |
| Pharmaceutical | Not Suitable | Not suitable |
| Agriculture | Not Suitable | Not suitable |
| Food | Not Suitable | Not suitable |
7. PRODUCTION PROCESS
| Stage | Process | Description |
|---|---|---|
| 1. Raw Material Preparation | Ytterbium oxide (Yb₂O₃) | High purity ytterbium oxide obtained |
| 2. Acid Dissolution | Dissolution in hydrochloric acid (HCl) | Yb₂O₃ + 6HCl → 2YbCl₃ + 3H₂O |
| 3. Filtration | Removal of impurities | Insoluble impurities are filtered out |
| 4. Concentration | Evaporation | Solution is concentrated |
| 5. Crystallization | Hydrated form | YbCl₃·6H₂O crystallized |
| 6. Drying | Controlled conditions | Crystals dried under appropriate conditions |
| 7. Packaging | Moisture-proof packaging | Packaged under inert atmosphere due to hygroscopic nature |
7.1. Major Producing Countries
| Country | Description |
|---|---|
| China | Major producer |
| USA | Rare earth production (Sigma-Aldrich, American Elements) |
| Germany | High purity production |
| Japan | High purity production |
8. ALTERNATIVE / SUBSTITUTE PRODUCTS
| Alternative | Description | When to Use |
|---|---|---|
| Ytterbium Oxide (Yb₂O₃) | Ytterbium source | When oxide form is required |
| Ytterbium Nitrate (Yb(NO₃)₃) | Ytterbium source | When different anion is required |
| Ytterbium Acetate | Organic synthesis | When organic solvent compatibility is required |
| Yttrium Chloride (YCl₃·6H₂O) | Similar chemical properties | When Y is required |
| Erbium Chloride (ErCl₃·6H₂O) | Similar chemical properties | When Er is required |
9. SAFETY AND TOXICOLOGY
| Parameter | Value |
|---|---|
| Acute Oral Toxicity (LD50, Rat) | > 2,000 mg/kg (low toxicity) |
| Dermal Toxicity | Low |
| Skin Irritation | Mild to moderate irritant |
| Eye Irritation | Serious irritant |
| Inhalation | Dust inhalation may cause respiratory tract irritation. |
| Carcinogenicity | Not classified as carcinogenic. |
| Mutagenicity | Not mutagenic. |
| Chronic Effects | Rare earth compounds have low bioavailability; however, high doses may cause liver effects. |
| Environmental Hazards | Moderate aquatic toxicity; caution required due to chloride ion content. |
9.1. GHS Classification
| Hazard Class | Category | H-Statement |
|---|---|---|
| Skin Irritation | Category 2 | H315: Causes skin irritation. |
| Eye Irritation | Category 2A | H319: Causes serious eye irritation. |
| Specific Target Organ Toxicity | Category 3 | H335: May cause respiratory irritation. |
| Hazardous to the Aquatic Environment | Category 3 | H402: Harmful to aquatic life. |
Signal Word: WARNING
Hazard Pictograms: GHS07 (Exclamation Mark)
10. PRECAUTIONARY STATEMENTS (P-CODES)
| Code | Statement |
|---|---|
| P261 | Avoid breathing dust. |
| P264 | Wash thoroughly after handling. |
| P271 | Use only in well-ventilated areas. |
| P280 | Wear protective gloves/eye protection/face protection. |
| P302+P352 | IF ON SKIN: Wash with plenty of soap and water. |
| P304+P340 | IF INHALED: Remove person to fresh air and keep comfortable for breathing. |
| P305+P351+P338 | IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. |
| P337+P313 | If eye irritation persists: Get medical advice/attention. |
| P501 | Dispose of contents/container in accordance with local regulations. |
11. FIRST AID MEASURES
| Exposure Route | Action to Take |
|---|---|
| Inhalation | Remove to fresh air. If symptoms persist, seek medical attention. |
| Skin Contact | Wash with plenty of soap and water. Remove contaminated clothing. If irritation persists, seek medical attention. |
| Eye Contact | Rinse thoroughly with plenty of water for at least 15 minutes. Remove contact lenses. If irritation persists, seek medical attention. |
| Ingestion | Rinse mouth. Drink plenty of water. If large amount is swallowed, seek medical attention. |
12. STORAGE AND SHELF LIFE
| Parameter | Condition |
|---|---|
| Storage Conditions | Store in a cool, dry, and well-ventilated area. Storage under inert atmosphere (Argon or Nitrogen) is recommended. |
| Container Requirements | Moisture-proof, airtight, tightly closed containers. Glass bottle or PTFE-lined containers. |
| Temperature | Room temperature (15-25°C). |
| Shelf Life | 12-18 months under appropriate conditions (due to hygroscopic nature). |
| Stability Note | Highly hygroscopic; rapidly degrades in humid environments. If left open, Yb(OH)₃ and Yb₂(CO₃)₃ may form. |
13. PACKAGING OPTIONS
| Packaging Type | Quantity | Material |
|---|---|---|
| Laboratory Packaging | 5 g, 10 g, 25 g, 50 g | Glass bottle, sealed cap, inert atmosphere |
| Laboratory Packaging | 100 g, 250 g, 500 g | HDPE bottle, inert atmosphere |
| Industrial Packaging | 1 kg, 5 kg | PE-lined bag, moisture-proof |
| Drum | 25 kg | HDPE drum, moisture-proof |
14. TRANSPORT INFORMATION
| Parameter | Information |
|---|---|
| UN Number | 3077 (Environmentally hazardous substance) |
| Hazard Class | 9 (Miscellaneous dangerous substances) |
| Packing Group | III |
| ADR/RID | Regulated |
| IMDG | Regulated |
| IATA | Regulated |
| HS Code | 2846.90.00.00.19 (Other rare earth compounds) |
15. REGULATORY STATUS
| Region / Authority | Status |
|---|---|
| European Union (REACH) | Registered |
| Turkey (KKDIK) | Compliance required |
| TSCA (USA) | Registered |
| CLP/GHS | Compliant |
| FDA/EFSA | Not approved as a food additive |
| ISO 9001:2015 | Production compliance |
16. OTHER NAMES AND SYNONYMS
| Name | Description |
|---|---|
| Ytterbium Trichloride Hexahydrate | Chemical name |
| Ytterbium(III) Chloride Hexahydrate | Chemical name |
| YbCl₃·6H₂O | Chemical abbreviation |
| Ytterbium Chloride Hydrate | English name |
| Ytterbium Trichloride Hexahydrate | English name |
17. QUICK REFERENCE TABLE
| Property | Value |
|---|---|
| CAS Number | 10035-01-5 |
| EC Number | 233-058-6 |
| Chemical Formula | YbCl₃·6H₂O |
| Molecular Weight | 385.41 g/mol |
| Appearance | White crystalline solid |
| Density | ~2.4 g/cm³ |
| Melting Point | ~100 °C (hydrated form) |
| Solubility in Water | Soluble |
| UN Number | 3077 |
| HS Code | 2846.90.00.00.19 |
| GHS Signal Word | WARNING |
18. CRITICAL WARNINGS AND BEST PRACTICES
CRITICAL WARNINGS:
Highly Hygroscopic Nature: Ytterbium chloride hexahydrate has a very high moisture absorption capacity. When exposed to air, it rapidly absorbs moisture, begins to dissolve, and loses its quality. Extreme care must be taken to avoid moisture during storage and handling.
Thermal Decomposition: Above ~100-150°C, water loss begins; at higher temperatures, toxic hydrogen chloride (HCl) gas is released. Ventilation is essential.
Incompatibility: Contact with strong oxidizing agents creates a fire and explosion risk.
Eye and Skin Irritation: Due to its acidic nature, it causes irritation to skin and eyes. Protective equipment is mandatory during use.
Environmental Impact: Classified as environmentally hazardous under UN 3077; release into water sources must be prevented.
BEST PRACTICE RECOMMENDATIONS:
Storage:
Store in a cool, dry, and well-ventilated area.
Use moisture-proof, airtight containers.
Keep away from oxidizing agents.
Store at room temperature (15-25°C).
Handling:
Immediately close containers tightly when not in use.
Ensure a dry working environment during use (humidity control).
Use a dust mask (N95 or better), protective goggles, and chemically resistant gloves.
Avoid dust formation and inhalation.
Wash hands thoroughly after handling.
When preparing solutions, add slowly due to acidic character.
Waste Management:
Dispose of in accordance with local regulations as heavy metal waste.
Do not discharge into water sources or sewers.
For large quantities, rare earth recovery should be considered.
LEGAL DISCLAIMER
This Technical Data Sheet (TDS) is for informational purposes only and has been prepared based on available technical data. The user is solely responsible for determining the suitability of the product for their specific applications and for complying with all local, national, and international regulations. For complete safety, storage, handling, transport, disposal, and regulatory compliance information, the official Safety Data Sheet (SDS/MSDS) provided by the manufacturer/supplier must be consulted. This document does not substitute professional advice. Ytterbium chloride hexahydrate requires careful handling and storage due to its highly hygroscopic nature and role in optical applications; it is an important raw material for laser, optical, and catalyst applications.
